Refurbishment specifiers learn this the hard way: a linear slot diffuser pulled from a manufacturer’s catalogue almost never sits cleanly into a heritage ceiling. The gap between the spec sheet and the site is usually a quiet design failure that surfaces only at first fix, when the architectural intent is already locked.
This brief outlines the three structural reasons standard linear slot diffusers fail in heritage and re-use projects, and what to specify instead.
1. Plenum depth almost never matches catalogue assumptions
Catalogue linear slot diffusers are designed against an industry-typical plenum depth of around 250–350 mm — the space between a modern suspended ceiling and the structural slab above. Heritage buildings rarely give you that depth. A timber-joist ceiling in an 18th-century corner building, a 1960s concrete soffit retained for re-use, a Georgian cornice retained on three sides — each leaves significantly less usable depth than the catalogue assumes, and the available plenum is rarely uniform across a single ceiling plane.
The catalogue diffuser’s published throw, drop and acoustic ratings are calculated against the deeper plenum. Drop them into a shallow void and airflow short-circuits, noise rises, and the room never reaches the comfort the spec promised.
What to spec instead: confirm available plenum depth at the earliest survey — measured at the worst point on the ceiling, not the best — and request a custom-built terminal designed against that constraint. A 0.8 mm aluminium body can be reduced to under 35 mm overall depth — and on non-standard requirements, down to 18 mm — without compromising flow. Standard catalogue stock cannot.

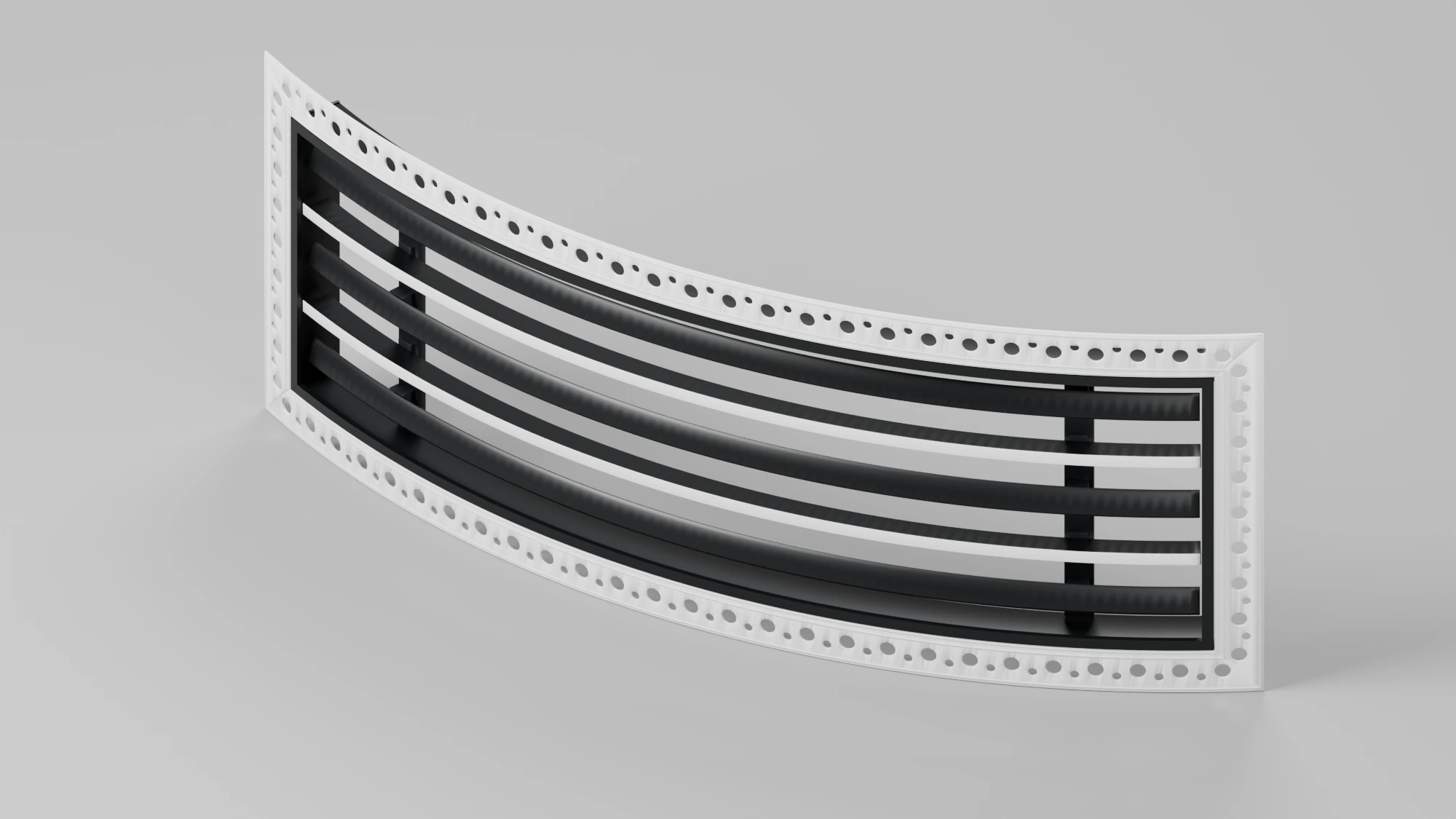

2. Ceiling geometry refuses to follow stock dimensions
Linear slot diffusers are sold in modular lengths: 600, 900, 1200, 1500 mm. Heritage ceilings are not modular. A barrel-vaulted bay measures 1140 mm; a coffered panel inset measures 870 mm; a salvaged cornice run is whatever the original carpenter cut.
Specifying two 600 mm units to fill an 1140 mm opening leaves a 60 mm dead strip in plain view. Specifying one 1200 mm and trimming on site usually means cutting through the carrier rail that holds the blades, which compromises blade alignment and removes the airflow performance the catalogue diffuser was originally tested against.
What to spec instead: built-to-drawing length. A small-batch manufacturer can cut the extrusion, the carrier rail and the blade lengths to match an exact opening, and supply matching mitred end caps so the terminal reads as one continuous element. The engineering tolerance is under 2 mm on a 1 metre run.
3. Reveal-frame width fights the surrounding palette
A standard linear slot diffuser carries a 25–40 mm visible reveal frame in white powder-coated steel. In a contemporary office ceiling that disappears into the surrounding suspended grid. In a heritage interior — raw lime plaster, oak joinery, brushed brass details — that 25 mm white border reads as borrowed hardware and breaks the visual language of the room.
The reveal frame is not a structural necessity. It exists because catalogue manufacturing tolerances cannot guarantee a clean junction at the ceiling line, so a wider frame absorbs the variance.
What to spec instead: narrow-reveal terminals built to a specified ceiling tolerance. Frame widths from 0.5 cm are achievable when the manufacturer matches the diffuser to a single project’s site survey rather than to a generic catalogue. Finish options should include matte white powder-coat, brushed aluminium, and heat-transfer wood-grain — the last allowing the reveal frame to disappear into oak, walnut or ash ceiling treatments.
What to send a custom manufacturer
A useful custom brief is shorter than most specifiers expect. The five lines that matter:
- Opening dimensions (length × width) at three points along the run — start, middle, end — to capture any taper.
- Available plenum depth, measured at the shallowest point.
- Ceiling material and finish — plaster, timber, microcement, etc. — and the surrounding palette.
- Air volume requirement in m³/h or l/s (your MEP engineer has this).
- Target installation week, including any heritage protection lead-time on adjacent works.
A small-batch manufacturer can return a quote and section drawing within 48 hours against this brief. Factory dispatch lead time is typically 7 days for standard finishes and 14 days for wood-grain or custom-matched samples — sea-freight from China to Rotterdam, Felixstowe or Hamburg adds a further 28–35 days. Standard MOQ is 20 linear metres; tooling fees apply only on geometry that requires a new extrusion.
When to specify catalogue, when to specify custom
Catalogue linear slot diffusers remain the right answer in three cases: new-build offices on a standard suspended grid, retrofits with confirmed plenum depth above 200 mm, and any project where the ceiling is itself a commodity surface intended to recede.
Custom built-to-drawing terminals are the right answer when the ceiling is doing architectural work — when its material, geometry or constraint set is part of the design, and ordinary hardware would interrupt the language. Heritage and re-use projects almost always fall into this second category.
Closing note
The cost difference between a catalogue diffuser and a built-to-drawing equivalent is rarely the deciding factor on a heritage project. Catalogue stock at standard market price is functionally cheaper than a custom unit at €50–120 — but the rework cost of replacing a poorly-specified terminal at second fix is six to ten times the unit-price difference. The economic argument and the aesthetic argument point in the same direction.
